VIZ++ Sample: PartialDisk

VIZ++ Samples

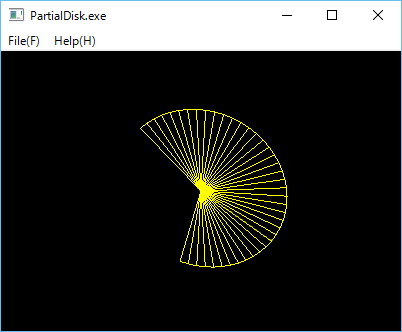

1 Screenshot


2 Source code

/*
 * PartialDisk.cpp
 * Copyright (c) 2015 Antillia.com TOSHIYUKI ARAI. ALL RIGHTS RESERVED.
 */


//2017/02/10

#include <viz++/opengl/OpenGLMainView.h>
#include <viz++/opengl/OpenGLGC.h>
#include <viz++/opengl/OpenGLPartialDisk.h>

namespace VIZ {

class MainView :public OpenGLMainView {

private:
  SmartPtr<OpenGLGC>            gc;

  SmartPtr<OpenGLQuadric>       quadric;
  SmartPtr<OpenGLPartialDisk>   disk;

public:
  virtual void display()
  {
    if (gc && disk) {
       gc -> loadIdentity();
       gc -> clear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);

       gc -> lookAt(2.0, 4.0, 8.0, 0.0, 0.0, 0.0, 0.0, 1.0, 0.0);

       gc -> polygonMode(GL_FRONT_AND_BACK, GL_LINE);
       gc -> color(1.0, 1.0, 0.0);
       disk -> draw( 0.0, 0.8, 40, 1, -45, 240);
    }
  }

  virtual void resize(int w, int h)
  {
    if (w == 0 || h == 0) {
          return;
    }
    if (gc) {
       gc -> matrixMode(GL_PROJECTION);
       gc -> loadIdentity();
       gc -> perspective(16.0, (double)w / (double)h, 0.5, 40.0);

       gc -> matrixMode(GL_MODELVIEW);
    }
  }

  virtual void initialize()
  {
     gc = new OpenGLGC();

     quadric = new OpenGLQuadric();
     disk = new OpenGLPartialDisk(quadric);
  }

public:
  MainView(OpenGLApplet& applet, int width, int height, const char* name)
  :OpenGLMainView(applet, width, height, name)
  {
  }

  ~MainView()
  {
  }
};
}

//
int main(int argc, char** argv)
{
  try {
    ModuleFileName module;
    const char*  name = module.getAppName();
    OpenGLApplet applet(argc, argv);


    MainView view(applet, 400, 300, name);
    view.realize();
    applet.run();

  } catch (Exception& ex) {
    caught(ex);
  }
  return 0;
}


Last modified: 10 Feb 2017
