VIZ++ Sample: FilledCube

VIZ++ Samples

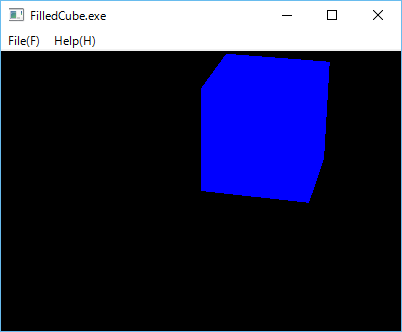

1 Screenshot


2 Source code

/*
 * FilledCube.cpp
 * Copyright (c) 2015 Antillia.com TOSHIYUKI ARAI. ALL RIGHTS RESERVED.
 */


//2017/02/10 Updated.

#include <viz++/opengl/OpenGLMainView.h>
#include <viz++/opengl/OpenGLGC.h>
#include <viz++/opengl/OpenGLClientState.h>

namespace VIZ {

class MainView :public OpenGLMainView {

private:
  SmartPtr<OpenGLGC> gc;

public:
  virtual void display()
  {
    if (gc) {
      static GLfloat points[] ={
        0.0, 0.0, 0.0,
        1.0, 0.0, 0.0,
        1.0, 1.0, 0.0,
        0.0, 1.0, 0.0,
        0.0, 0.0,-1.0,
        1.0, 0.0,-1.0,
        1.0, 1.0,-1.0,
        0.0, 1.0,-1.0,
      };

      static GLuint index[]={
        0, 1, 2, 3,
        1, 5, 6, 2,
        5, 4, 7, 6,
        4, 0, 3, 7,
        4, 5, 1, 0,
        3, 2, 6, 7
      };


      gc -> loadIdentity();
      gc -> clear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);

      gc -> lookAt(2.0, 4.0, 8.0, 0.0, 0.0, 0.0, 0.0, 1.0, 0.0);
      OpenGLClientState client(GL_VERTEX_ARRAY);

      //gc -> polygonMode(GL_FRONT_AND_BACK,GL_LINE);
      gc -> polygonMode(GL_FRONT_AND_BACK,GL_FILL);
      gc -> color(0.0, 0.0, 1.0);
      gc -> lineWidth(2.0);
      gc -> vertexPointer(3, GL_FLOAT, 0, points);
      gc -> drawElements(GL_QUADS, CountOf(index), GL_UNSIGNED_INT, index);
    }
  }

  virtual void resize(int w, int h)
  {
    if (w == 0 || h == 0) {
       return;
    }
    if (gc) {
      gc -> matrixMode(GL_PROJECTION);
      gc -> loadIdentity();
      gc -> perspective(16.0, (double)w / (double)h, 0.5, 40.0);
      gc -> matrixMode(GL_MODELVIEW);
    }
  }

  virtual void initialize()
  {
    gc = new OpenGLGC();
  }


public:
  MainView(OpenGLApplet& applet, int width, int height, const char* name)
  :OpenGLMainView(applet, width, height, name)
  {
  }

  ~MainView()
  {
  }
};
}

//
int main(int argc, char** argv)
{
  try {
    ModuleFileName module;
    const char*  name = module.getAppName();
    OpenGLApplet applet(argc, argv);

    MainView view(applet, 400, 300, name);
    view.realize();

    applet.run();

  } catch (Exception& ex) {
    caught(ex);
  }
  return 0;
}
