SolProcessTree

1 SolProcessTree

  SolProcessTree is a Windows GUI tool to view a tree structure of all processes of a local computer. See Figure 1.
This is a tiny tool to view a tree hierachy of processes, threads count of a process and a list of module names of a process. .
SolProcessTree can be used to show visually a hierachy of processes and dependent module names(*.exe, *.dll) of the processes.


Note:
  • 2009/09/14: Modified to show 'FileVersion' information of a module file of a process. See Figure 2.
  • 2009/09/28: Modified to show 'File Property' information of a module file of a process. See Figure 3.
  • 2 Download

      You can download the latest SolProcessTree 1.0.0.3(28 Sep 2009) : (SolProcessTree.zip)

    3 How to use it?

    1. Run SolProcessTree program on your desktop, then a Windows window will be displayed.
    A tree of all processes hierachy with a label of 'Process ID', 'Threads Count' and 'Module Name'
    of a process on the local computer will be shown in the left treeview.See Figure 1.

    2. To show the latest information, select [Refresh] item of a pulldown menu for [File] menu.

    3. To show a version of a module file, select a file name in the right listview pane.
    Click a right button of mouse on a file of the listview, and a context menu will be displayed.
    Select [Version Properties] item from the context menu, then a FileVersion Window to show properties
    of the selected file version will be displayed. See Figure 2.

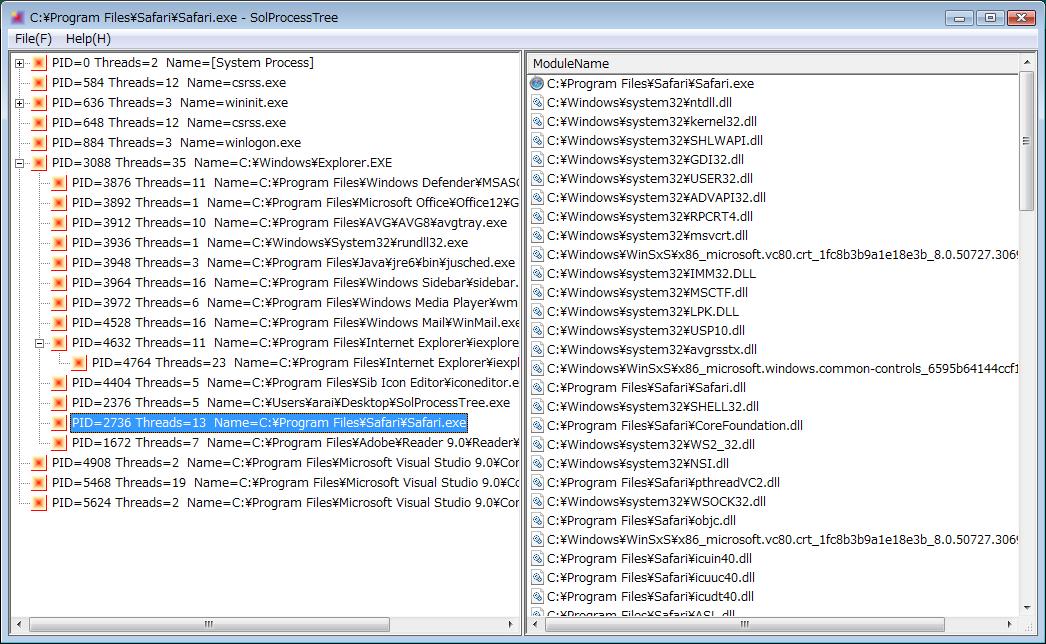

    Figure 1 SolProcessTree

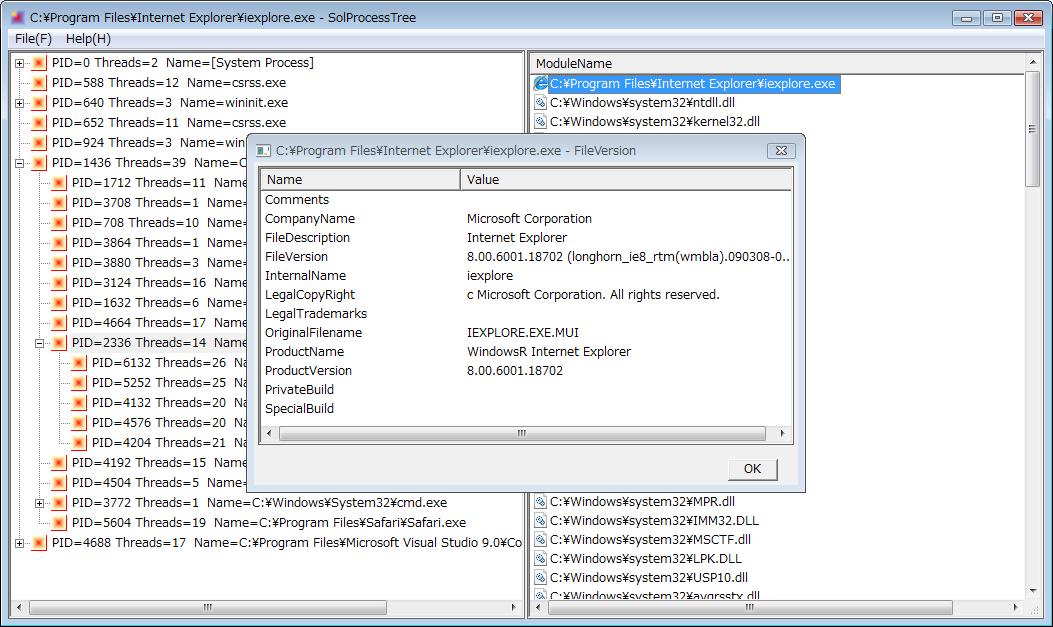

    Figure 2 SolProcessTree Module File Version

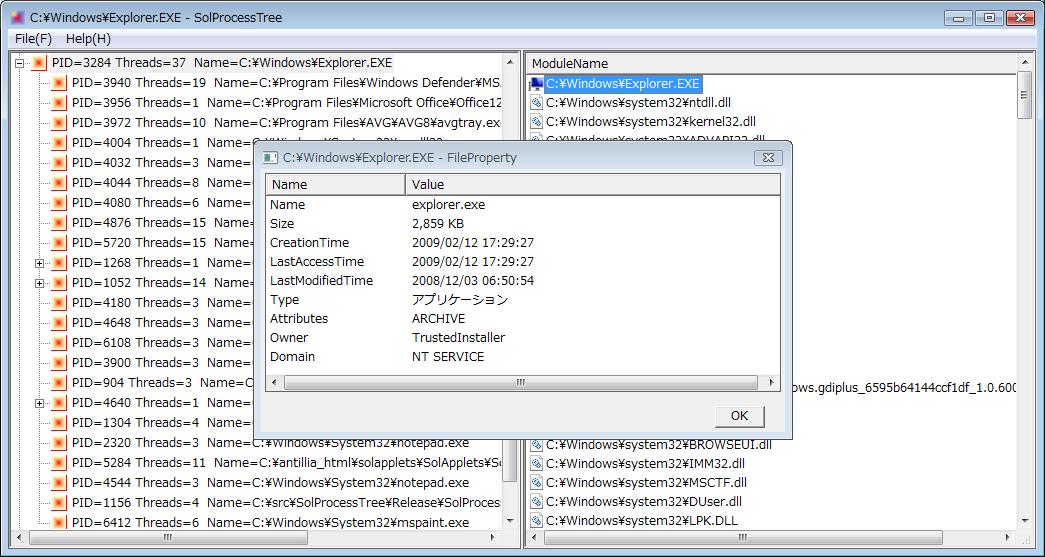

    Figure 3 SolProcessTree Module File Property
