SOL9 Sample: Direct3DX10PolygonMesh

SOL9 2.0 Samples

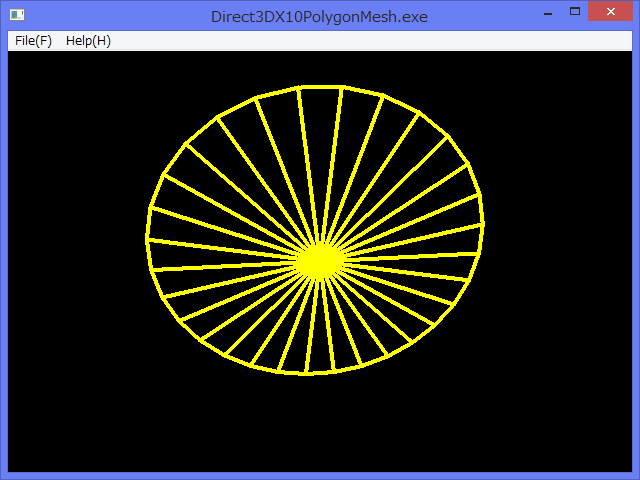

1 Screenshot


2 Source code

/*
 * Direct3DX10PolygonMesh.cpp
 * Copyright (c) 2015 Antillia.com TOSHIYUKI ARAI. ALL RIGHTS RESERVED.
 */


// 2015/10/20
// 2017/01/19 Updated display to call setShaderMatrices.
// 2017/01/28 Updated to use ModuleFileName class and caught macro.

#pragma warning(disable : 4005)
#pragma warning(disable : 4838)

#define COMMONCONTROLS_V6

#include <sol/PushButton.h>
#include <sol/direct3d10/DirectX3D10MainView.h>
#include <sol/direct3d10/DirectX3D10View.h>

#include <sol/direct3d10/Direct3D10RenderTargetView.h>
#include <sol/direct3d10/Direct3D10DepthStencilView.h>

#include <sol/direct3d10/Direct3D10Texture2D.h>
#include <sol/direct3d10/Direct3DX10Font.h>
#include <sol/direct3d10/D3D10Texture2DDesc.h>
#include <sol/direct3d10/D3D10DepthStencilViewDesc.h>
#include <sol/direct3d10/Direct3DX10Mesh.h>

#include <sol/direct3d10/D3DXVertex.h>
#include <sol/direct3d10/Direct3D10EffectModel.h>
#include <sol/direct3d10/Direct3D10EffectTechnique.h>
#include <sol/direct3d10/Direct3D10EffectPass.h>

//#include <sol/direct3d10/Direct3D10EffectMatrixVariable.h>
#include <sol/direct3d10/Direct3D10RasterizerState.h>

#include <sol/direct3d10/Direct3D10InputLayout.h>

#include <sol/direct3d10/Direct3DX10Polygon.h>

#include "resource.h"

namespace SOL {

class MainView :public DirectX3D10MainView {

private:
  //////////////////////////////////////////////
  //Inner class starts
  class SimpleView : public DirectX3D10View {
  private:
    SmartPtr<Direct3D10RenderTargetView>  renderTargetView;
    SmartPtr<Direct3D10DepthStencilView>  depthStencilView;
    SmartPtr<Direct3D10RasterizerState>   rasterizerState;
    SmartPtr<Direct3D10EffectModel>       model;
    SmartPtr<Direct3DX10Polygon>          mesh;
    SmartPtr<Direct3D10InputLayout>       inputLayout;

    D3DXMATRIX          worldMatrix;
    D3DXMATRIX          viewMatrix;
    D3DXMATRIX          projectionMatrix;

    StringT<TCHAR>      directory;
    float               angle;

  public:
    void deleteViews()
    {
      Direct3D10Device* d3d10device = getD3D10Device();
      d3d10device ->setOMRenderTargets(0, NULL, NULL);

      renderTargetView = NULL;
      depthStencilView = NULL;
    }

    virtual void createViews()
    {
      int width  = 0;
      int height = 0;

      validateClientSize(width, height);

      try {
        Direct3D10Device*   d3d10Device  = getD3D10Device();
        DirectXGISwapChain* swapChain = getSwapChain();

        d3d10Device ->setOMRenderTargets(0, NULL, NULL);

        //1 Create an instance of Direct3D10RenderTargetView
        Direct3D10Texture2D renderTargetViewTexture(*swapChain); ;

        renderTargetView = new Direct3D10RenderTargetView(*d3d10Device, renderTargetViewTexture, NULL);

        //2 Create a temporary depthDesc(D3D10Texture2DDesc).
        D3D10Texture2DDesc depthDesc;
        depthDesc.width(width);
        depthDesc.height(height);
        depthDesc.mipLevels(1);
        depthDesc.arraySize(1);
        depthDesc.format(DXGI_FORMAT_D32_FLOAT);
        depthDesc.sampleDescCount(1);
        depthDesc.sampleDescQuality(0);
        depthDesc.usage(D3D10_USAGE_DEFAULT);
        depthDesc.bindFlags(D3D10_BIND_DEPTH_STENCIL);

        //3 Create a temporary depthStencilTexture(Direct3D10Texture2D) from texture2DDesc.
        Direct3D10Texture2D depthStencilTexture(*d3d10Device, depthDesc);

        //4 Create a temporary depthStencilViewDesc(D3D10DepthStencilViewDesc)
        D3D10DepthStencilViewDesc depthStencilViewDesc(DXGI_FORMAT_D32_FLOAT, D3D10_DSV_DIMENSION_TEXTURE2D);

        //5 Create an instance of Direct3DDepthStencilView from depthStencilTexture and depthStencilViewDesc
        depthStencilView = new Direct3D10DepthStencilView(*d3d10Device, depthStencilTexture, depthStencilViewDesc);

        ID3D10RenderTargetView* targetView   = *renderTargetView;
        //6 Set renderTargetView and depthStencilView to id3d10Device
        d3d10Device ->setOMRenderTargets(1, &targetView, *depthStencilView);

      } catch (Exception& ex) {
        caught(ex);
      }
    }

    void createEffect()
    {
      try {
        Direct3D10Device* d3d10Device = getD3D10Device();
        TCHAR fullpath[MAX_PATH];
        _stprintf_s(fullpath, CountOf(fullpath), _T("%s\\..\\fx\\%s"), (const TCHAR*)directory, _T("shapeEffect.fx"));

        Args args;
        args.set(XmNtechnique, "render");
        args.set(XmNview,      "View");
        args.set(XmNworld,     "World");
        args.set(XmNprojection,"Projection");

        model = new Direct3D10EffectModel(*d3d10Device,
                  fullpath,
                  args);
      } catch (Exception& ex) {
        caught(ex);
      }
    }


    const D3D10_INPUT_ELEMENT_DESC* getInputElementDesc(size_t& count)
    {
      static const D3D10_INPUT_ELEMENT_DESC desc[] = {
        { "POSITION", 0, DXGI_FORMAT_R32G32B32_FLOAT,    0,  0, D3D10_INPUT_PER_VERTEX_DATA, 0 },
        { "COLOR",    0, DXGI_FORMAT_R32G32B32A32_FLOAT, 0, sizeof(D3DXVECTOR3), D3D10_INPUT_PER_VERTEX_DATA, 0 }
      };
      count = CountOf(desc);
      return desc;
    }

    void createInputLayout()
    {
      try {
        Direct3D10Device* d3d10Device = getD3D10Device();
        Direct3D10EffectTechnique* technique = model -> getTechnique();

        Direct3D10EffectPass effectPass =  technique->getPassByIndex(0);

        D3D10_PASS_DESC passDesc;
        effectPass.getDesc(passDesc);
        size_t count = 0;
        const D3D10_INPUT_ELEMENT_DESC* inputElementDesc = getInputElementDesc(count);

        inputLayout = new Direct3D10InputLayout(
              *d3d10Device,
              inputElementDesc,
              count,
              passDesc.pIAInputSignature,
              passDesc.IAInputSignatureSize);

        d3d10Device->setIAInputLayout(*inputLayout);

      } catch (Exception& ex) {
        caught(ex);
      }
    }

    void createMesh()
    {

      try {
        Direct3D10Device* d3d10Device = getD3D10Device();
        float fLength   = 0.3f;
        UINT uSides     = 30;
        mesh = new Direct3DX10Polygon(*d3d10Device, fLength,
            uSides);

      } catch (Exception& ex) {
        caught(ex);
      }
    }

    void createRasterizerState()
    {
      try {
        Direct3D10Device* d3d10Device = getD3D10Device();
        D3D10_RASTERIZER_DESC desc;
        memset(&desc, 0, sizeof(desc));
        desc.CullMode               = D3D10_CULL_FRONT;//D3D10_CULL_NONE;
        desc.FillMode               = D3D10_FILL_WIREFRAME; //D3D10_FILL_SOLID;
        desc.FrontCounterClockwise  = true;
        desc.DepthBias              = true; //false;
        desc.DepthClipEnable        = true;
        desc.ScissorEnable          = false;
        desc.MultisampleEnable      = false;
        desc.AntialiasedLineEnable  = true;

        rasterizerState = new Direct3D10RasterizerState(*d3d10Device, &desc);

        d3d10Device->setRSState(*rasterizerState);

      } catch (Exception& ex) {
        caught(ex);
      }
    }

    void setShaderMatrices()
    {
      int width = 0;
      int height = 0;
      getClientSize(width, height);

      try {
        D3DXVECTOR3 eye( 0.0f, 2.0f,-3.0f );
        D3DXVECTOR3 at ( 0.0f, 0.0f, 0.0f );
        D3DXVECTOR3 up ( 0.0f, 1.0f, 0.0f );

        D3DXMatrixLookAtLH(&viewMatrix,  &eye, &at, &up);

        D3DXMatrixPerspectiveFovLH(&projectionMatrix,
                  (float)D3DX_PI * 0.3f, (float)width/(float)height, 0.1f, 100.0f);

        model -> setView(viewMatrix);
        model -> setProjection(projectionMatrix);

      } catch (Exception& ex) {
        caught(ex);
      }
    }

    virtual void initialize()
    {
      try {
        createEffect();

        createInputLayout();

        createMesh();

        createRasterizerState();

        setShaderMatrices();

        // Create rendarTargetView and depthStencilView.
        createViews();

      } catch (Exception& ex) {
        caught(ex);
      }
    }

    virtual void display()
    {
      int width  = 0;
      int height = 0;
      getClientSize(width, height);
      try {
        Direct3D10Device*  d3d10Device = getD3D10Device();
        DirectXGISwapChain* swapChain = getSwapChain();
        if (renderTargetView && depthStencilView) {
          renderTargetView -> clear(D3DXCOLOR(0.0, 0.0, 0.0, 0.0));
          depthStencilView -> clear();
          //2017/01/19
          setShaderMatrices();

          angle += 0.05f;

          Direct3D10EffectTechnique* technique = model -> getTechnique();

          D3DXMatrixRotationY(&worldMatrix, angle);
          model -> setWorld(worldMatrix);

          //Draw the teapot mesh.
          mesh -> draw(*technique);
        }
        swapChain -> present();

      } catch (Exception& ex) {
        caught(ex);
      }
    }

  public:
    // Constructor
    SimpleView(DirectX3D10MainView* parent, const TCHAR* name, Args& args)
   :DirectX3D10View(parent, name,
                 args.set(XmNstyle, (ulong)WS_CLIPCHILDREN) ),
    directory(_T("")),
    angle(3.0f)
    {
      directory = (const TCHAR*)args.get(XmNapplicationDirectory);
      D3DXMatrixIdentity(&worldMatrix);
      D3DXMatrixIdentity(&projectionMatrix);
      D3DXMatrixIdentity(&viewMatrix);

    }

    ~SimpleView()
    {
    }

  public:
    void incrementAngle(float value)
    {
      angle += value;
    }
    void decrementAngle(float value)
    {
      angle -= value;
    }

  private:
    void resize(int width, int height)
    {
      Direct3D10Device*   device = getD3D10Device();
      DirectXGISwapChain* swapChain = getSwapChain();
      if (device           == NULL ||
          swapChain        == NULL ||
          renderTargetView == NULL ||
          depthStencilView == NULL) {
        return ;
      }

      try {
        // 1 Delete existing rendarTargetView and depthStencilView.
        deleteViews();

        // 2 ResizeBuffers swapChain(IDXGISwapChain)
        swapChain -> resizeBuffers(width, height);

        // 3 Recreate rendarTargetView and depthStencilView.
        createViews();

        // 4 SetViewPort
        setViewPort(width, height);

      } catch (Exception& ex) {
        caught(ex);
      }
    }
  };
  //////////////////////////////////////////////
  // Inner class ends.

private:
  void incrementAngle(Action& action)
  {
    if (view != nullptr) {
      view -> incrementAngle(0.1f);
      view -> display();
    }
  }

  void decrementAngle(Action& action)
  {
    if (view != nullptr) {
      view -> decrementAngle(0.1f);
      view -> display();
    }
  }


private:
  SmartPtr<SimpleView> view;

public:
  // Constructor
  MainView(Application& applet, const TCHAR* name, Args& args)
  :DirectX3D10MainView(applet, name,
                 args.set(XmNstyle, (ulong)WS_CLIPCHILDREN|WS_CLIPSIBLINGS) )
  {
    const TCHAR* directory = (const TCHAR*)args.get(XmNapplicationDirectory);

    // 1 Create a view of SimpleView.
    Args ar;
    int width  = 0;
    int height = 0;
    getClientSize(width, height);

    ar.reset();
    ar.set(XmNwidth, width);
    ar.set(XmNheight,height);
    ar.set(XmNapplicationDirectory, (const TCHAR*)directory);
    //ar.set(XmNstyle, WS_BORDER|WS_CHILD|WS_VISIBLE);
    view = new SimpleView(this, _T(""), ar);

    postResizeRequest();
  }

public:
  ~MainView()
  {
  }

private:
  void resize(int width, int height)
  {
    if (view != nullptr) {
      view -> reshape(0, 0, width, height);
      view -> postResizeRequest(width, height);
    }
  }
};

}

//////////////////////////////////////////////
//
void  Main(int argc, TCHAR** argv)
{
  ModuleFileName module(argv[0]);
  const TCHAR* directory = module.getDirectory();
  const TCHAR* appClass =  module.getAppName();

  try {
    Application applet(appClass, argc, argv);

    Args args;
    args.set(XmNapplicationDirectory, directory);
    args.set(XmNwidth,  640);
    args.set(XmNheight, 480);
    MainView mainv(applet, appClass, args);

    mainv.realize();

    applet.run();
  } catch (Exception& ex) {
    caught(ex);
  }
}
