SOL9 2.0 Sample: CircleThread

SOL9 2.0 Samples

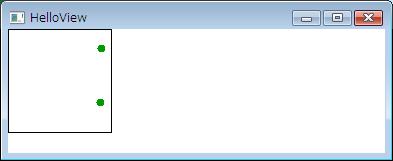

1 Screenshot


2 Source code

/*
 * CircleThread.cpp
 * Copyright (c) 2009 Antillia.com TOSHIYUKI ARAI. ALL RIGHTS RESERVED.
 */


// SOL++2000
// 2000.02.18
// 2009/10/10

#include <sol\Semaphore.h>
#include <sol\Exception.h>
#include <sol\Stdio.h>
#include <sol\ApplicationView.h>
#include <sol\Thread.h>
#include <sol\ClientDC.h>
#include <sol\Brush.h>
#include <sol\Pen.h>
#include <sol\PaintDC.h>

namespace SOL {

class CircleThread :public Thread {
private:
    BOOL    doing;
    int        count;
    int        radius;
    View*    view;
    int        x, y;
    int        px, py;
    int        vx, vy;
    // regin
    int        rx1, rx2;
    int        ry1, ry2;

public:

    /**
     * Constructor
     */
    CircleThread(View* view, int radius, int count)
    :Thread(),
    doing(TRUE)
    {

        this -> view   = view;
        this -> radius = radius;
        this -> count  = count;
        vx = 3;//11;
        vy = radius;//4; //8;
        x  = -10;
        y  = -9;
        px = -10;
        py = -9;
        rx1 = radius;//4;
        rx2 = 100;// + radius;//24;
        ry1 = radius;//4;
        ry2 = 100;//+ radius;//24;
    }


public:
    void run()
    {
        int i = 0;

        while(doing) {
            sleep(100);
            ClientDC dc(view);
            int r = radius;

            px = x;
            py = y;
            x += vx;
            y += vy;
            // right
            if(vx > 0 && x +r > rx2) {
                x = 2* rx2 - x;
                vx = -vx;
            }

            //left
            else if(vx < 0 && x -r < rx1) {
                x = 2*rx1 - x;
                vx = -vx;
            }
            //
            if(vy > 0 && y +r >ry2) {
                y = 2* ry2 - y;
                vy = -vy;
            }
            else if( vy < 0 && y -r < ry1){
                y = 2*ry1 - y;
                vy = -vy;
            }

            Pen pen(PS_INSIDEFRAME, 10, RGB(255,100, 255));

            HGDIOBJ prev = dc.select(&pen);

            dc.setROP2(R2_XORPEN);

            dc.ellipse(px + r, py + r, px- r, py -r);

            dc.ellipse(x + r, y + r, x- r, y -r);
            dc.select(prev);
            i++;
        }
    }

};



class HelloView :public ApplicationView {
private:
    CircleThread* thread;

public:
    /**
     */
    HelloView(Application& applet, const TCHAR* name, Args& args)
        :ApplicationView(applet, name, args)
    {
        thread = new CircleThread(this, 4, 100);
        thread->start();
        addEventHandler(WM_PAINT, this,
            (Handler)&HelloView::paint, null);
    }

public:
    ~HelloView()
    {
        thread -> terminate(0);
        thread -> wait(INFINITE);
        delete thread;
    }

public:
    long paint(Event& event) {
        PaintDC dc(this);
        dc.rectangle(0, 0, 100+4, 100+4);
        return 0L;
    }
};

}

//

void    Main(int argc, TCHAR** argv)
{
    const TCHAR* name = _T("HelloView");
    Application applet(name, argc, argv);

    try {
        Args args;
        args.set(XmNwidth, 200);
        args.set(XmNheight, 200);

        HelloView hellov(applet, name, args);
        hellov.realize();
        applet.run();
    }
    catch (Exception& ex) {
        ex.printf();
    }
}
